24.125GHz Microwave sliding door sensor

Good components selection to ensure the sensor performance ;

GERMANY Microwave module inside to provice the senosr best stability ;

We Skilled workers for assembly and test fully ;

Good designed package box to improve the increased value and apperance



MODEL

ZB-401B/ZB-401U

ZB-402

ZB-405

POWER SUPPLY

AC/DC 12V ~ AC/DC 24V

AC/DC 12V ~ AC/DC 24V

AC/DC 12V ~ AC/DC 24V

MAINS FREQUENCY

50Hz ~ 60Hz

50Hz ~ 60Hz

50Hz ~ 60Hz

FREQUENCY

24.125GHz

24.125GHz

24.125GHz

TILT ANGLES

0° to 90° vertical and -30° to + 30° lateral

0° to 90° vertical

0° to 90° vertical and -30° to + 30° lateral

SENSING TIME / HOLD TIME

REAL-TIME / 0.5 SEC

REAL-TIME / 0.5 SEC

REAL-TIME / 0.5-12 SEC adjustable

RANGE

4.0M(W) X 3.0M(D)

4.0M(W) X 3.0M(D)

4.0M(W) X 3.0M(D)

POWER CONSUMTION :

STANDBY OPERATION:

200mW@12V
550mW@12V

200mW@12V
550mW@12V

200mW@12V
550mW@12V

DETECTION ANGLE

40' ~ 160'

40' ~ 160'

40' ~ 160'

OPERATING TEMP.

-25'C ~ +60'C

-25'C ~ +60'C

-25'C ~ +60'C

RELATIVE HUMIDITY

0 ~ 95 %

0 ~ 95 %

0 ~ 95 %

MOUNTING STYLE

WALL

WALL

WALL

MOUNTING HEIGHT

3.0M (MAX) (other specification need to order in advance)

3.0M (MAX)

4.0M (MAX) (other specification need to order in advance)

WEIGHT

210g

210g

210g

COLOR

SILVER or BLACK

SILVER or BLACK

SILVER or BLACK

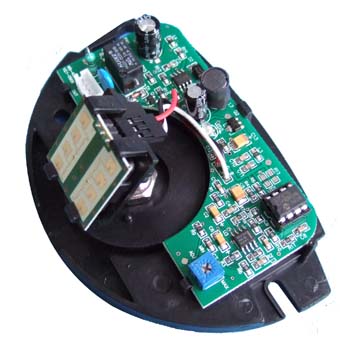

ZB-401B

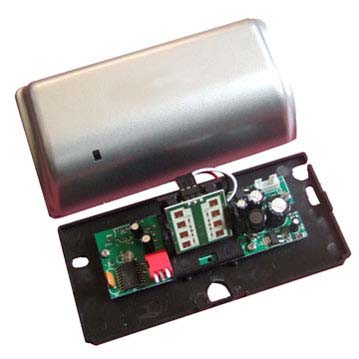

ZB-402

ZB-405


ZB-401U

Picture of install
Install On The Automatic Door

Best Quality to be installed more than 300 pcs on Shanghai pudong international airport project !

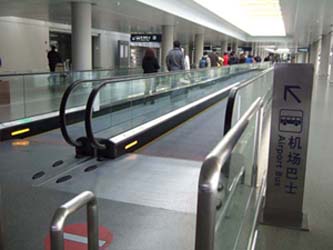

Pictures of Microwave Sensors from Shanghai Pudong International airport

　
