Indicating Led Lights

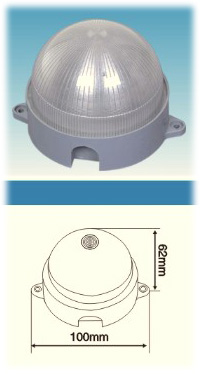

Model: D80



Product specification:

  1. Brand:ZOM
  2. Type:D80
  3. Input Voltage:DC10.5-24V
  4. Electric fluid:Red lamp 38mA, Green lamp 38mA
  5. The all product use USA’s CREE Brand LEDS
  6. The LED light (red or green) will be on according to the connection and input voltage
  7. Visible distance: >200M
  8. There are two separate sets of LED lights, red and green(or Blue or Yellow etc)
  9. The characteristics of the LED lights are: pure color, multiple style long life-time, etc
  10. The life time of LED light is over 5 year
Install easily with screwer

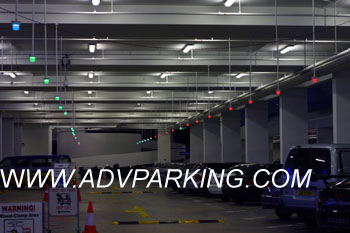

Application With Ultrasonic Radar Sensor In PGS


Picture Of Some Project In The Word Wide
Thailand Malaysia China

Indonesia Kroea Thailand
United States Australia Franch

Japan Spain Austria
