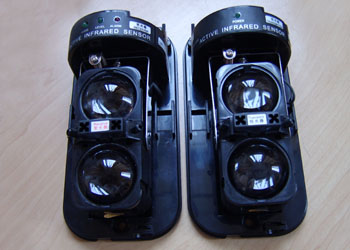

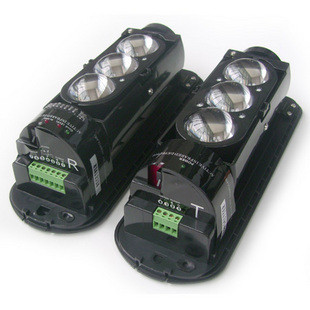

Automatic Door Safety Beam Sensors (Model: HW-100ABE)

Infrared Photoelectric



Model: ABE-50 / ABE-100 / ABE-150 / ABE-200 / ABE-250



Features:

Adjustable beam interruption time

Twin beams require simultaneous interruption to create activation

99% beam blocking stability

Easy installation and alignment using viewfinder for rough alignment and voltage meter jacks for fine-tuning

Sealed optics to prevent ingress of insects and dust.


Specifications:



MODEL

ABE-50

ABE-100

ABE-150

ABE-200 ABE-250

Detection Method

Infrared Photoelectric

Range

Outdoor:50m
Indoor:150m

Outdoor:100m
Indoor:300m

Outdoor:150m
Indoor:450m

Outdoor:200m
Indoor:600m
Outdoor:250m
Indoor:750m

Beam Characteristics

1000 pps. 8800Å pulsed infrared.

Interruption Period

50 to 700 msec (variable)

Power Input

12 to 24 VDC

Current Draw

90mA max.( 12 - 24 VDC)

105mA max.( 12 - 24 VDC)

Indicator

Transmitter-Green LED On in transmitting condition
Receiver-Red LED On in alarm condition

Alarm Period

2 sec.(±1) nominal

Alarm Output

RELAY1C(28VDC, 0.2Amax)

Tamper Switch

Opens when cover is removed.

Operating Temperature

-13°F to +131°F (-25°C to +55°C)

Environmental Humidity

95% max

Alignment Angle

±5° Vertical, ±90° Horizontal

Mounting

Wall and Pole

Demensions inches(mm)

15*8*5

Weight

24.3oz (970g)

Standard Accessories

Screws (0.6" x 3/4" self tapping) x 4 Pole mount kit)
