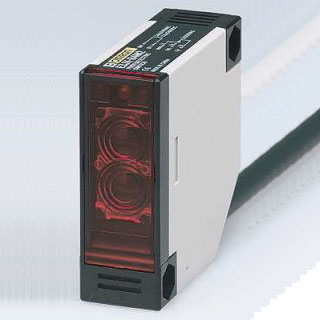

Beam Sensors (E3JK)

Light Beams, also known as Photo Eyes have been used in a variety of applications for a number of years. These sensors detect the presence of a person or object that interrupts the light beam by passing through its path. Typically used for threshold safety, entry notification and start-up activation, it has become a mainstay product for many industries from automatic door manufacturers to premises security companies.

Light beams use a transmitter/receiver system to send an invisible or infrared light beam through the air along a desired path. When the beam is interrupted, a signal is sent to the internal relay, which is wired into the device controls.

Wafer remains on the cutting edge of IR Technology providing the Automatic Door Industry with safe, reliable sensors that come in the most compact housings available in today's market, making Wafer products the best solution for automatic door applications

Specification

Type

E3JK-5M

E3JK-R2M

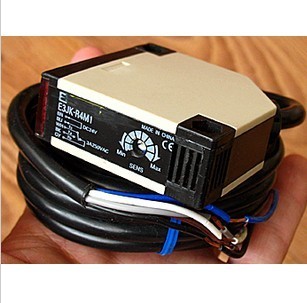

E3JK-R4M

E3JK-DS30M

Detection Method

Through Beam

Retro Reflective

Deffuse Reflective

Deffuse Reflective

Sensing Distance

5.0 m

2.5 m

4.0 m

30 cm

Output

Relay

Voltage UB  [V]

12…36 DC

Current IL  [mA]

≤200

Delay Time

≤3ms

Protection

IP67

Function Indication

Led

Control Output

AC250V 3A

Angle Of Beam

Tempreture  [℃]

-25…+55

Housing Material

Plastic ABS

Weight

350 g

Dimension

M50*50*18



Application Examples

Through-beam

The sensor detects the position of the pallet prior to the wrapping process.

Retro-reflective

A sensor looks across the doorway of a lift to detect the presence of passengers before closing.

Diffuse

Detection of the presence of boxes to prevent jamming on a handling system.
