Parking Guidance System

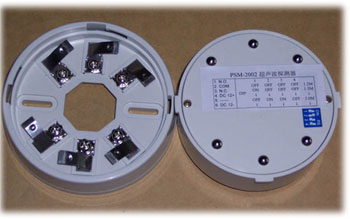

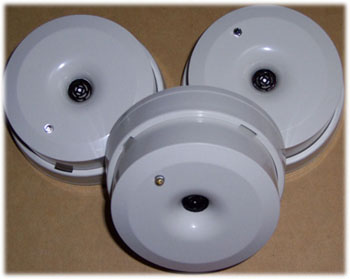

Parking Space Detector/Ultrasonic Radar Sensor/Parking Lot Sensor

Model: ZU-2002



ADVANTAGES OF USING E-GUIDE :


� User Friendly Individual Car Park Bay Counting and Guiding with Graphic Display
� Parking Charge Calculation base on car dwelling time under the sensors
� Security Monitor for cars at the bays
� Monitor status of car park Usage
� Monitor inappropriate parking
� Low Power Consumption by the system
� Create additional car park bays on the circulating lanes


 Specially design to detect moving vehicles or objects.
 Compatible with any wireless or remote control security system. Applicable for controlling all types of entry gates.
 Equip with advanced ultrasound detector to eliminate the false alarm problem.
 An easy external control DIPswitch to set multiple detection ranges between 1.2 and 5 meter. Alarm activation by any moving object within the preset range.
 Separate detector and control module facilitating easy installation and maintenance
 Color indicator LED showing the status of the alarm functioning.
 An advanced parking space inventory device capable of detecting exact locations of available parking space in a multi-story parking ramp.

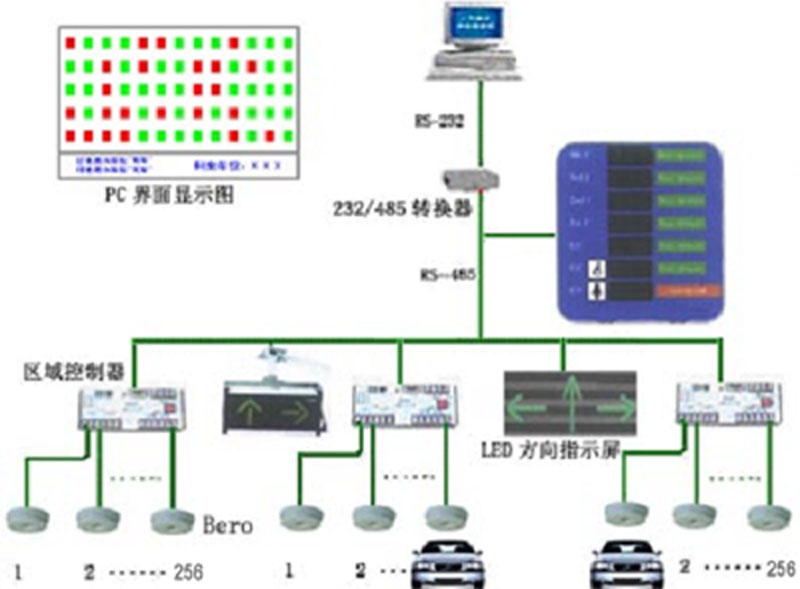

 Integration of ZU-2002 with intelligent parking ramp software capable of correctly directing the driver from the entry point with indicating light on the drive way to the exact pre-assigned location of available parking space in a multi-story parking ramp. Also capable of directing the driver with indicating light on the driveway back to exit point.
 ABS plastic finishing for durability and aesthetic.

Specifications

Model ZU-2002
Input Voltage DC12/24V
Ampere 40 mA
Detection Method Ultrasound/Laser reflection
Frequency 40 KHz
Detection Speed 100 m/Sec
Detection Distance 1.2~ 5M
Detection Angle 15 degree
Output Relay / RS485
Working Temperature 32℉ ~122℉ (0℃ ~50℃ )
Dimension Diameter 10 cm and Height 4 cm
Weight 140 g

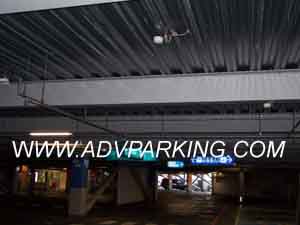

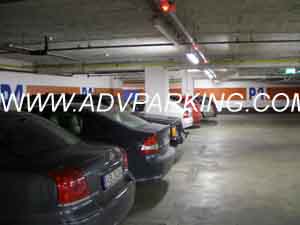

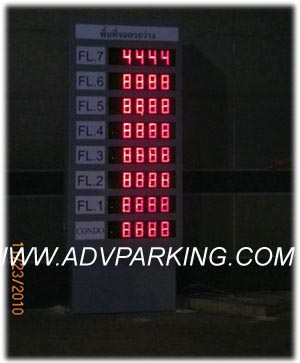

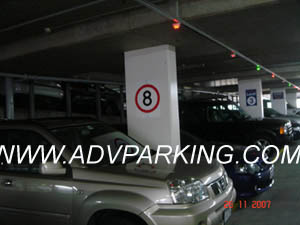

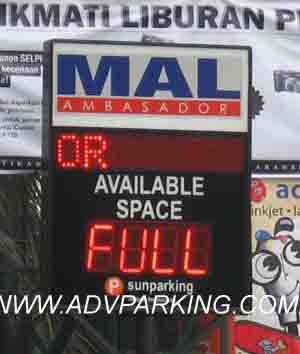

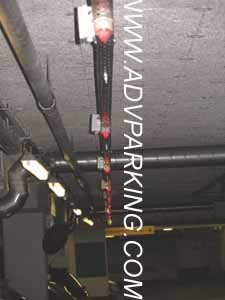

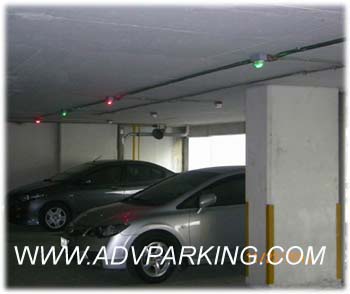

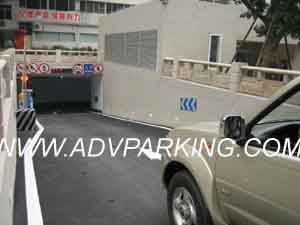

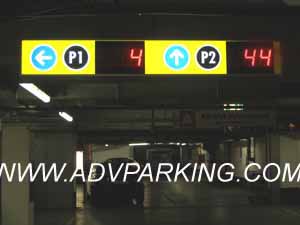

Picture Of Some Project In The Word Wide
Thailand Malaysia China
Indonesia Kroea Thailand
United States Australia Franch

Japan Spain Austria
