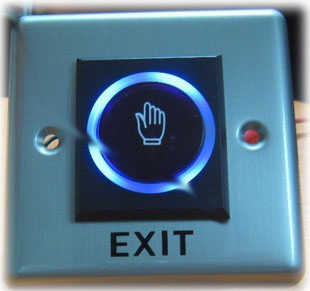

Hand Sensor Switch  (Model:HS-101)



■The HS-101 Hand Sensor Switch are active infrared devices designed to activate full and low energy automatic doors.

Their hands free operation makes them ideal for ADA applications. Other applications include clean-room access points, request-to-exit devices and point-of-purchase displays. The HS-101 is microprocessor controlled allowing for superior operation in a smaller unit.


Main technical parameters:

Model: HS-101
Power supply: DC12V
Static power consumption: 62 mA current action: 115 mA
Induction distance:

1 ~ 20 CM adjustable.

Modulation and demodulation frequency:

38KHZ

Induction:

active Infrared Reflectance

Surface Composition:

imports scrub patch

Working environment Humidity:

10 to 90% RH

Operating temperature range:

-20 c ~ 45c

Size:

115 mm (L) * 70mm (W) * 28mm (H)

Weight:

85g

Fixed:

fixed positive hidden screws
